UV Coil Purifiers In Plant City, FL

How UV Coil Purifiers Work

• Placement: UV-C lamps are installed so their output shines across the evaporator coil and drain pan. This is usually inside the air handler or in the return plenum immediately upstream of the coil.
• Action: The UV-C wavelength (commonly near 254 nm) damages microbial DNA and cell structure, reducing live bacteria, mold, and fungi on coil surfaces and in stagnant drain pans.
• Result: Less biofilm and microbial buildup leads to improved heat transfer, more consistent airflow through the coil, fewer musty odors, and reduced need for chemical coil cleaning.

Common HVAC problems UV coil purifiers address in Plant City homes

• Recurring mold or mildew smell from vents after heavy rain or high humidity.
• Reduced cooling performance despite normal refrigerant pressure and fan operation.
• Frequent coil cleanings or evidence of greasy biofilm on coil fins.
• Households with allergy sufferers, asthma, or immune-suppressed occupants looking to reduce microbial load near the indoor coil.
• Systems that sit idle during cooler months and develop microbial growth when restarted during humid Florida summers.

Types of UV coil systems and installation options

• Single-lamp coil-mounted fixtures: Typical for most residential systems; mounted directly across or slightly upstream of the coil.
• Multi-lamp arrays: Used for larger air handlers, commercial units, or heavily contaminated coils.
• Retrofit kits: Designed for existing systems; include lamp, ballast, mounting hardware, and wiring harnesses sized to the air handler access.
• New-install integration: Can be specified with new air handler installs so lamps and power are pre-wired and placed for optimal performance.

Typical installation and retrofit process

1. Inspection: Technician inspects the air handler: coil size, cabinet access, available power, and presence of drain pan issues.
2. Placement planning: Determine optimal lamp position to maximize exposure across the coil while avoiding direct exposure to occupants.
3. Mounting and wiring: Secure lamp fixture(s) to coil or cabinet and mount ballast in a dry area inside the cabinet or nearby. Wire to a dedicated circuit or to the air handler control per local code.
4. Testing: Power up and verify lamp ignition, ballast function, and proper beam coverage. Check for proper sealing to prevent accidental UV-C exposure.
5. Documentation: Record lamp model, wattage, and recommended replacement interval for maintenance records.

Routine maintenance and bulb-replacement intervals

• Annual bulb replacement: UV-C lamp output degrades over time even if they remain lit. Most manufacturers recommend replacing bulbs every 9 to 12 months to maintain effective microbial control.
• Quarterly/annual visual check: Inspect lamp operation and clean any dust buildup on protective sleeves during routine HVAC service. Replace sleeves if scratched or discolored.
• Ballast and fixture check: Ballasts typically last several years but should be checked annually for proper function. Replace if flickering or lamp fails to start quickly.
• Optional output testing: UV radiometers can confirm lamp intensity if there is concern about effectiveness.

Technical specifications and safety information

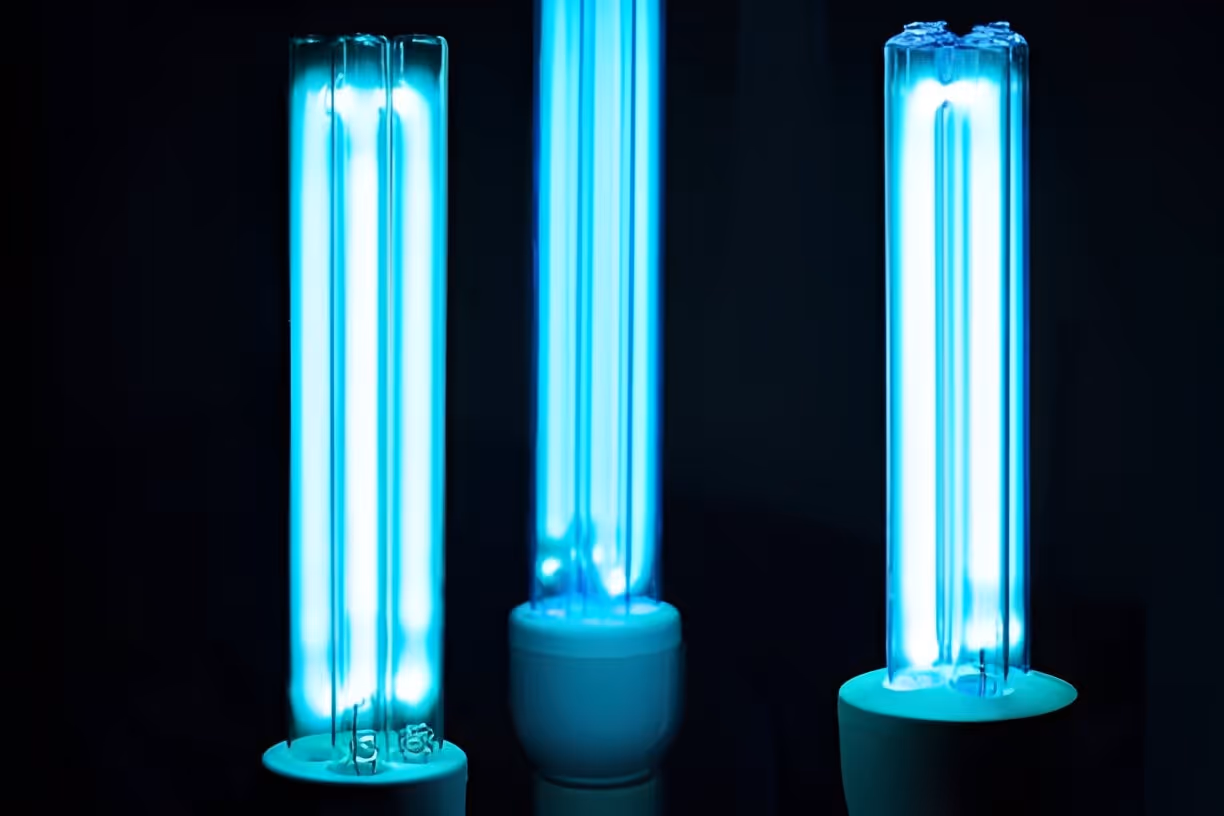

• Wavelength: Effective coil purifiers use UV-C around 254 nm which is effective against microbes and produces minimal ozone when using standard low-pressure mercury lamps.
• Lamp wattage: Residential lamp wattages commonly range from 8W to 40W depending on fixture and coverage area.
• Ozone safety: Choose ozone-free 254 nm lamps. Lamps emitting shorter wavelengths can produce ozone which is not recommended for occupied residential spaces.
• Electrical: Fixtures require a ballast and should be wired per manufacturer and electrical code. Power draws are low but must be protected by proper disconnects.
• Personal safety: UV-C is harmful to skin and eyes. Lamps should be installed where they do not expose occupants or service technicians to direct beams. Always de-energize and follow lock-out/tag-out before servicing.
• Certifications: Look for UL or ETL listings on fixtures and ballast. Installations must meet local building and electrical codes.

Typical costs and warranty details

• Installation costs: Residential UV coil purifier installations typically range from about $350 to $1,200 depending on system size, number of lamps, access difficulty, and whether it is a new-install or retrofit.
• Ongoing cost: Replacement bulbs usually range from $30 to $120 each annually depending on lamp type and supplier. Ballast replacement costs are additional if needed.
• Warranties: Manufacturer warranties often cover fixtures and ballasts for 1 to 5 years. Bulbs are consumable and may be excluded or carry a short warranty. Confirm specific coverage and any labor warranty offered at installation.

Who should consider UV Coil Purifiers in Plant City, FL

• Homes with chronic mold or musty odors coming from the HVAC system after thunderstorms or during high humidity months.
• Households with allergy or asthma sufferers seeking reduced microbial exposure at the coil and drain pan.
• Older systems that experience recurring coil fouling and frequent service calls for coil cleaning.
• Homeowners aiming to reduce maintenance and keep evaporator coils cleaner for more consistent cooling in Florida’s demanding climate.

Typical performance improvements and example outcomes

• Cleaner coils restore airflow and heat transfer, often reducing run times to achieve the same indoor comfort and helping systems run more efficiently.
• Many homeowners report reduced odor and fewer visible signs of mold in drain pans and on return grills after the first season of operation.
• Example case summary: A Plant City single-family home with recurring musty odors and reduced cooling restored normal airflow and eliminated odors after a single-lamp retrofit and seasonal bulb replacement schedule. Regular cleanings moved from quarterly to annual.

Long-term benefits and maintenance advice

• Combine UV coil purifiers with good filtration, regular duct and coil cleaning, and proper drain maintenance for best results.
• Schedule lamp replacement to coincide with annual HVAC tune-ups to keep upkeep simple and documentation current.
• Use ozone-free lamps and ensure fixtures are UL/ETL listed for residential use to protect occupants.

UV coil purifiers in Plant City, FL are a practical, low-energy way to reduce microbial growth at the heart of your HVAC system. For homes dealing with humidity-driven microbial issues, allergy concerns, or frequent coil maintenance, they are a focused upgrade that helps systems run cleaner and more reliably over time.
